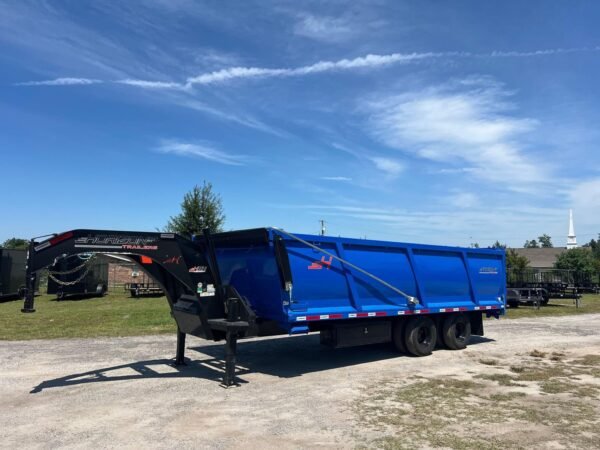

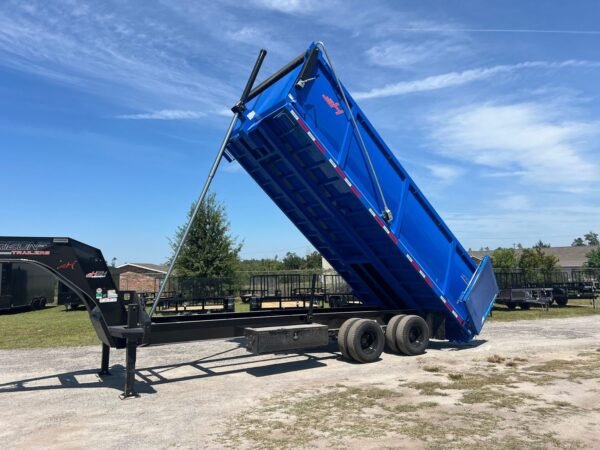

The 2025 Horizon HZH 96 inch by 20 ft 20K gooseneck dump trailer is a heavy commercial-grade hauler in the 20,000 lb GVWR class, sized for paving contractors, aggregate fleets, demolition crews, and equipment haulers who need more capacity than a typical 14K-class gooseneck dump. The 12-inch I-beam main frame and 12-inch I-beam tongue are heavy-equipment-trailer specs, not landscape-trailer specs. With 4-foot sides and a 20-foot deck, this Horizon gooseneck dump moves serious volume per cycle.
96-inch wide x 20-foot long deck (8 ft x 20 ft total deck), 4-foot side height

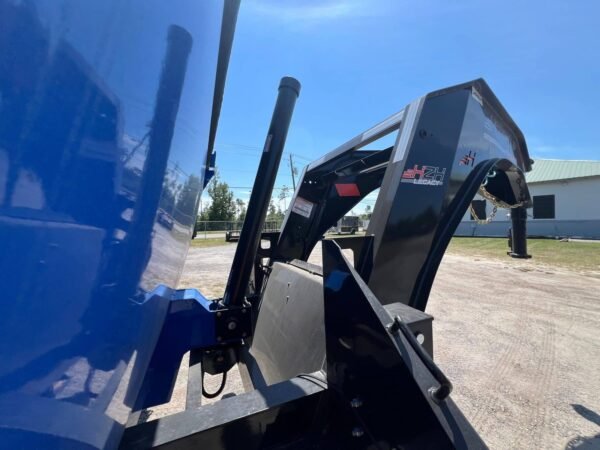

12-inch I-beam main frame, 12-inch I-beam tongue (19 lb/ft)
Pintle Ring coupler rated 42,000 lb (heavy-duty class)
Dual 12,000 lb side-wind spring-loaded drop jack legs
3/8-inch Grade 70 safety chains with clevis hooks (2 each)
Slide-in side step on both sides, weld-on spare tire mount, diamond mesh wire floor storage toolbox
VIN 3H7GD2025TRO12103, color Blue Horizon/Black, model HZH 96 in. x 20 ft 20K 4 ft
Best for paving and aggregate operations, demolition crews, and 1-ton+ truck operators needing 20K class haul capacity. Free nationwide delivery on every Horizon gooseneck dump in our inventory.
The 20,000 lb GVWR class sits between the 14K consumer-contractor dumps and full commercial 30K+ rigs. For paving and aggregate fleets running medium-haul cycles (10-30 mile radius), a 20K gooseneck dump moves about 13,000 lb of usable payload per cycle, roughly 35 percent more than a 14K trailer. The 12-inch I-beam frame is built for the punishment that 13K+ payloads put on the structure. Pintle ring coupler (rather than ball coupler) means easier hitching for fleet operators who switch trailers between trucks regularly.
What Can You Haul?
13,000 lb of crushed stone, gravel, or aggregate (about 5 cubic yards)
13,000 lb of asphalt millings or RAP for paving prep
Heavy demolition debris (concrete, brick, structural steel)
Coal or coal slurry for mining-feed operations
Compact construction equipment (loaded skid steer plus full attachment package)
Free Nationwide Delivery
PrimeLoad runs free-included delivery to all 50 US states on every dump trailer in our inventory. East Coast and Midwest: 5 to 10 business days. West Coast and rural: 7 to 14 days. The driver hands over the title, keys, and bill of lading at the curb. Full shipping policy.
Frequently Asked Questions
Pintle ring vs ball coupler on a gooseneck dump?
This Horizon HZH uses a pintle ring coupler (42K lb rating) which is the commercial-fleet standard. Pintle hitches are quicker to connect and disconnect, more forgiving of slight angle misalignment, and rated higher than equivalent-size ball couplers. Trade-off: requires a pintle hitch on the tow vehicle (not standard on consumer pickups).
What truck do I need to pull this fully loaded?
20,000 lb GVWR plus the truck weight will push combined gross above 26,000 lb, requiring a Class A CDL operator. Most fleets pull this with a 1-ton dually (F-450 / Ram 4500) or larger. The pintle ring + 4-foot sides configuration is typical for commercial fleets, not consumer use.

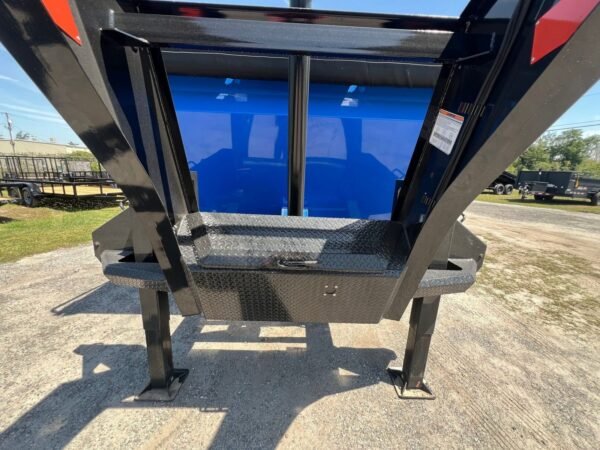

What does the diamond mesh wire floor toolbox do?
The toolbox sits forward of the bed, providing storage that drains water (mesh floor) and lets light through. Sized for chains, binders, ramp pins, gloves, and small parts. Lockable with a padlock.
